Overview

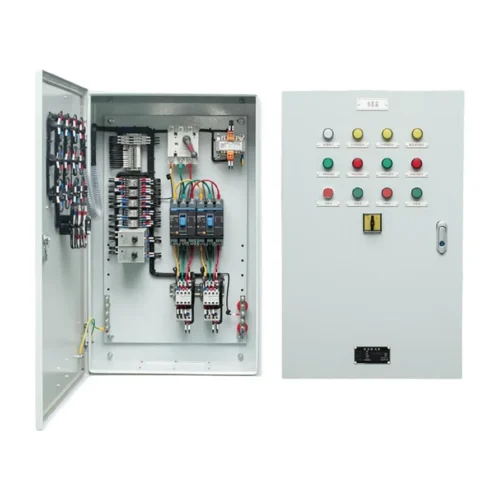

The JXF AC low-voltage distribution box produced by RUY Power is a kind of control components installed according to the requirements to combine various control functions of control and distribution appliances. Its characteristics are that it is made of steel plate bottom plate, and can be designed and installed according to the size requirements of the user’s installation components. It is suitable for terminal circuits with rated voltage of 220V or 380V, load single-circuit current not greater than 400A single-phase three-wire or three-phase five-wire, and as secondary and remote control of electrical equipment, overload, short-circuit, over-voltage leakage protection of electrical equipment. It can be widely used in ports, airports, factories, commercial areas, residential areas and industrial and mining enterprises.
This product complies with GB7251.1.
Structural Features
The main structural components of the JXF AC low-voltage distribution box include box body, cover, bottom plate, and electrical switch components. The built-in switch components can be verified according to the functional requirements provided by the customer. For the convenience of direct incoming and outgoing lines, the switch hole opening (dimension: 180×85) is provided. The rubber seal is used when leaving the factory, and the user can disassemble and install when incoming and outgoing lines are needed. The box body is divided into open-mounted (wall-mounted) and concealed-mounted (embedded) types, with open-mounted as the main type.
Technical Parameters
1. Rated working voltage: 230V 400V
2. Rated working current: 400A
3. Rated short-circuit breaking capacity: 80kA
4. Shell protection level: IP55
Frequently Asked Questions
What is the rated voltage of the JXF?
The JXF AC Low-Voltage Distribution Box operates at 230/400 V, suitable for the intended distribution application.
Does the JXF support OEM / ODM orders?
Yes. RUY Power provides custom branding, packaging and configuration for the JXF AC Low-Voltage Distribution Box to meet project requirements.
What standards does the JXF comply with?
The JXF AC Low-Voltage Distribution Box is designed and type-tested in accordance with GB7251.1.
What is the lead time for the JXF?
Standard lead time is 15-30 days depending on configuration and order quantity. Contact RUY Power for a precise delivery schedule.
